Chevrolet Bolt EV/EUV Charging UAE: 2023 vs 2027

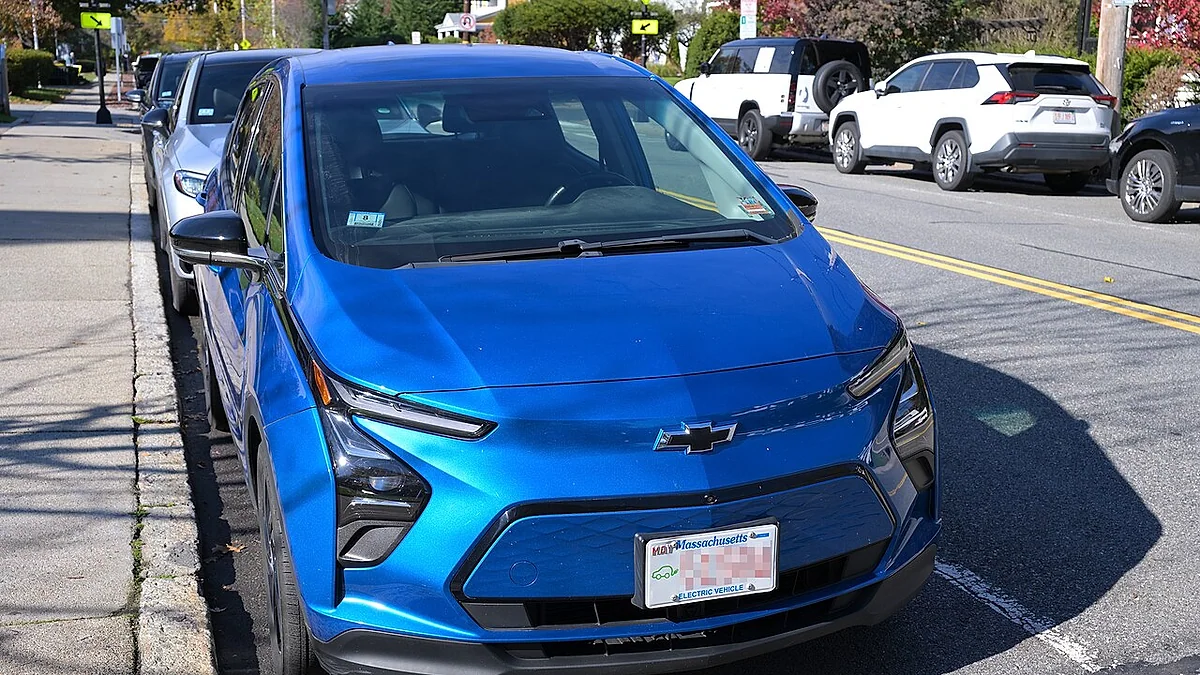

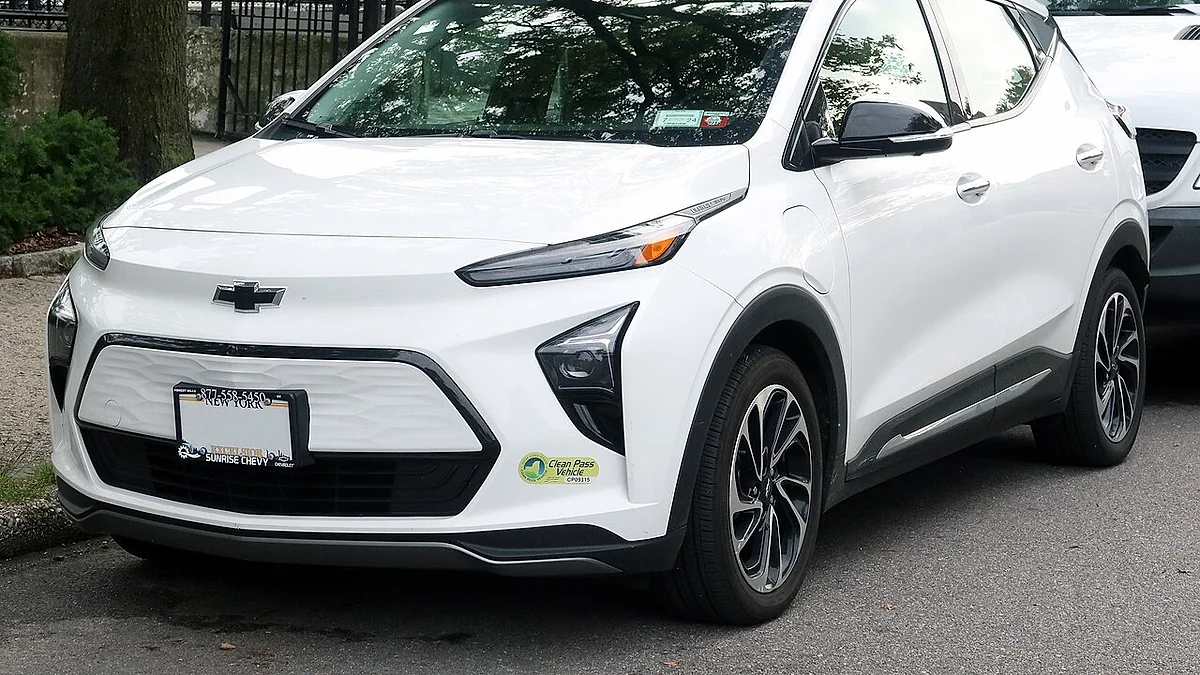

Short answer: Chevrolet’s 2023 Bolt EV specification documents a 65+ kWh battery, an 11.5 kW onboard charger, a J1772 vehicle connection and standard DC fast charging. The 2027 Bolt is a different charging generation: Chevrolet calls it the brand’s first native-NACS vehicle and publishes a much higher DC peak. UAE examples are imports, so “Bolt” must always be paired with exact model year and an inlet photo.

This page uses the official sources registered below the article. A figure from another market is evidence for that market only and is not silently converted into an UAE-vehicle specification.

Version and market decision table

What this means for a vehicle in the UAE

A 48 A North-American charging claim cannot be copied directly into an UAE circuit design. The installer must design from local voltage, supply, cable route, protection and approved equipment.

For 2017–2023 cars, document whether DC fast charging hardware is present; vehicle-side appearance matters more than a used-car advertisement.

For a 2027 Bolt, confirm that the customer actually owns the new generation. A registration year or seller’s wording can be wrong when cars are imported or registered later.

Choose the home charger without guessing

• Match the AC inlet on Chevrolet Bolt EV/EUV Charging UAE to the vehicle side of the EVSE; a DC headline must not select the home wallbox.
• Confirm the onboard AC limit and single-/three-phase behaviour from exact-version documentation or the vehicle screen where available.
• Check spare panel capacity, main breaker and existing large loads before choosing 7, 11 or 22 kW.
• Design cable and protection from current, route length, installation method, heat and charger instructions.
• Test earthing, protection and a real charging session before issuing the final customer handover report.

Photos and data to send

This checklist reduces repeated calls and lets the employee produce a clear report the first time:

• One wide photo of the complete open charge inlet, with every socket section visible.
• A second close photo of labels or connector symbols inside the charging flap.
• Model year and trim from the vehicle screen or registration, plus source-market evidence.
• Photos of every supplied cable or adapter label, including input/output ratings and part number.
• A clear main-board photo showing the main breaker and available phase arrangement.
• A continuous video or photo sequence from the main board to the proposed parking position.

Site design and installation

After the vehicle is resolved, the decision moves to the site: single or three phase, spare capacity, cable-route length, installation method, sun or water exposure, trenching/interlock and earthing condition. These determine design and price and cannot be inferred from the car model.

The final report should separate confirmed facts, estimates and items still requiring inspection. It should list the charger, cable, protection, isolator, civil work and testing as clear lines because the customer may already own some materials and need installation only.

Next step

Read the AC/DC connector guide, then open the installation planner. You can also return to the reviewed vehicle page for version status and official sources.
