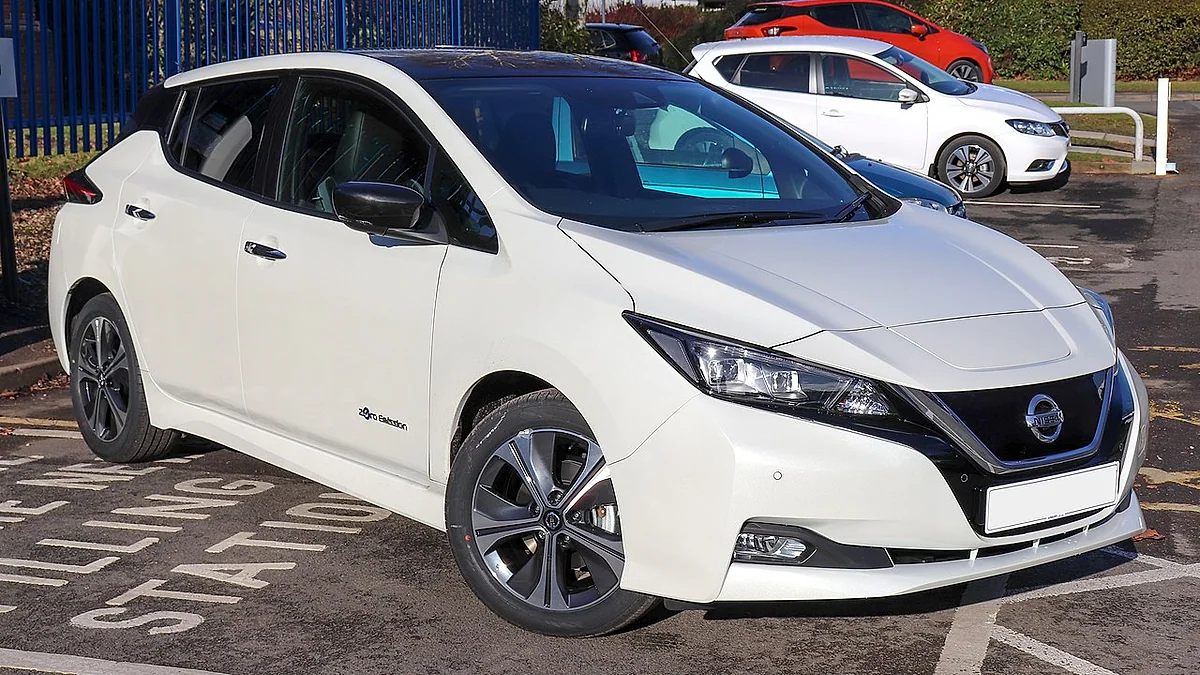

Nissan LEAF Charging in the UAE: Generation & Port Guide

Short answer: The name “Nissan LEAF” is not enough to select a connector. Nissan’s 2023 owner manual documents CHAdeMO rapid charging for the earlier generation and says the normal-charge inlet can be Type 1 or Type 2 by country. Nissan’s third-generation announcement moves selected new cars to CCS and publishes up to 11 kW AC and 150 kW DC. In the UAE, the model year, import market and a photo of the open inlet must be checked before a charger or adapter is sold.

This page uses the official sources registered below the article. A figure from another market is evidence for that market only and is not silently converted into an UAE-vehicle specification.

Version and market decision table

What this means for a vehicle in the UAE

Do not buy a CHAdeMO-to-CCS solution merely because a public station has a different cable. DC adapters are protocol, voltage, thermal and software products—not passive shape changers.

For home AC charging, match the wallbox cable to the car’s AC inlet first. Then limit the circuit and wallbox to the car’s onboard AC capability and the property’s spare capacity.

If the car is an earlier Japanese or North-American import, treat the port as an import-specific decision even when another LEAF of the same year in Europe looks similar.

Choose the home charger without guessing

• Match the AC inlet on Nissan LEAF Charging in the UAE to the vehicle side of the EVSE; a DC headline must not select the home wallbox.
• Confirm the onboard AC limit and single-/three-phase behaviour from exact-version documentation or the vehicle screen where available.
• Check spare panel capacity, main breaker and existing large loads before choosing 7, 11 or 22 kW.
• Design cable and protection from current, route length, installation method, heat and charger instructions.
• Test earthing, protection and a real charging session before issuing the final customer handover report.

Photos and data to send

This checklist reduces repeated calls and lets the employee produce a clear report the first time:

• One wide photo of the complete open charge inlet, with every socket section visible.
• A second close photo of labels or connector symbols inside the charging flap.
• Model year and trim from the vehicle screen or registration, plus source-market evidence.
• Photos of every supplied cable or adapter label, including input/output ratings and part number.
• A clear main-board photo showing the main breaker and available phase arrangement.
• A continuous video or photo sequence from the main board to the proposed parking position.

Site design and installation

After the vehicle is resolved, the decision moves to the site: single or three phase, spare capacity, cable-route length, installation method, sun or water exposure, trenching/interlock and earthing condition. These determine design and price and cannot be inferred from the car model.

The final report should separate confirmed facts, estimates and items still requiring inspection. It should list the charger, cable, protection, isolator, civil work and testing as clear lines because the customer may already own some materials and need installation only.

Next step

Read the AC/DC connector guide, then open the installation planner. You can also return to the reviewed vehicle page for version status and official sources.
